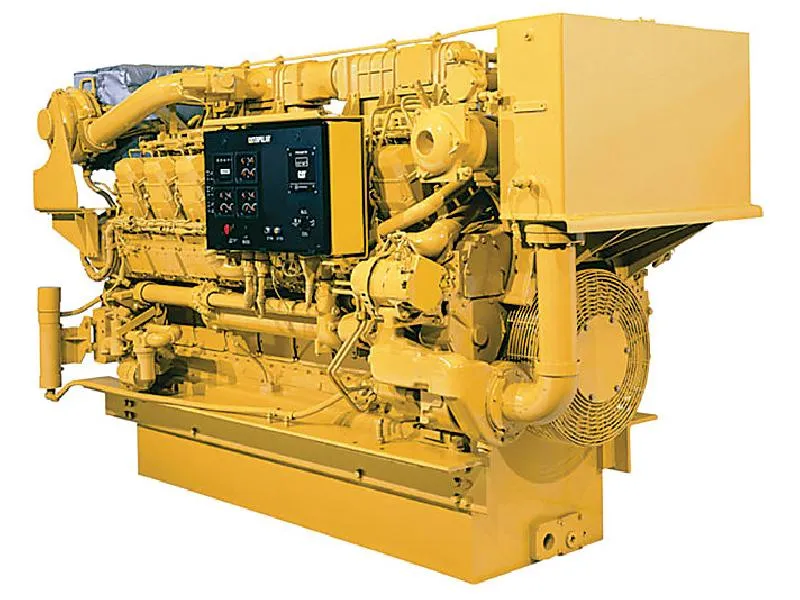

The 3516B marine propulsion engine includes the Advanced Diesel Engine Management System II, the Control Monitoring Protection System, the Customer Communication Module and the digital voltage regulator. Benefits include lower fuel consumption, reduced visible and gaseous emissions, enhanced diagnostics and monitoring capabilities, and higher rated power without reducing reliability. Within this power range, High Displacement (HD) ratings, High Performance (HD) ratings and Wide Operating Speed Range (WOSR) ratings are available.
Specifications:
Speed range: 1200-1800 rpm
Emissions: IMO II
Combustion: TTA
Bore: 170.0 mm
Stroke: 190.0 mm
Cylinder capacity: 69.0 L
Rotation (from flywheel end): Counter-clockwise or clockwise
Configuration: Vee 16, 4-stroke diesel engine
Power:
Power range: 1650-3000 hp (1230-2237 bkW)
