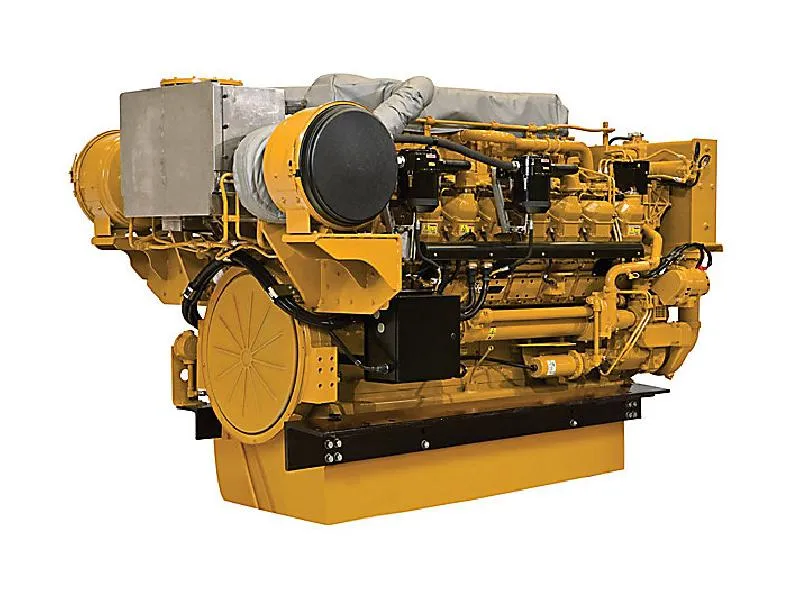

The 3516C propulsion engine is available in a wide range of power ratings that meet EPA Tier 3 and IMO II regulations without additional aftertreatment. These engines offer efficient operation with electronic control, cold-mode starting strategy and programmable low idle speed to minimise fuel consumption. The 3516C engine also has a closed crankcase ventilation system for lower emissions.
Specifications:
Speed range: 1600 rpm
Emissions: EPA Tier 3, IMO II
Combustion: TTA
Bore: 170.0 mm
Stroke: 215.0 mm
Cylinder capacity: 78.0 L
Rotation (from flywheel end): Counterclockwise
Configuration: Vee 16, 4-stroke diesel engine
Power:
Power range: 2131-2675 hp (1590-1995 bkW)
